DPF Pressure Readings Explained: What the Numbers Really Mean
If your car shows a DPF fault, a garage often talks about “pressure readings”.
This post explains what those readings measure, what “normal” looks like, and when it’s time to book a proper diagnostic.
A DPF pressure reading is not a guess.
It’s a measurement of how hard the engine has to push exhaust gas through the DPF.
When pressure rises, the DPF may be loading up.
Sometimes it just needs the right drive cycle.
Other times it needs cleaning, regeneration, or fault-finding because something else caused the soot build-up.
Quick takeaway
- Pressure readings help show DPF restriction, not the full cause.
- One reading means very little without engine load and RPM context.
- The right next step depends on what the car is doing, not just the number.
If you’re seeing warning lights or limp mode, start here as well:
DPF warning signs and when cleaning makes sense
.
When pressure readings stay high
If differential pressure remains elevated even after proper driving conditions, the DPF may require professional cleaning rather than another drive cycle attempt. Our mobile DPF cleaning service operates across the West Midlands and can diagnose whether the issue is soot loading, ash restriction, or an underlying regeneration fault.

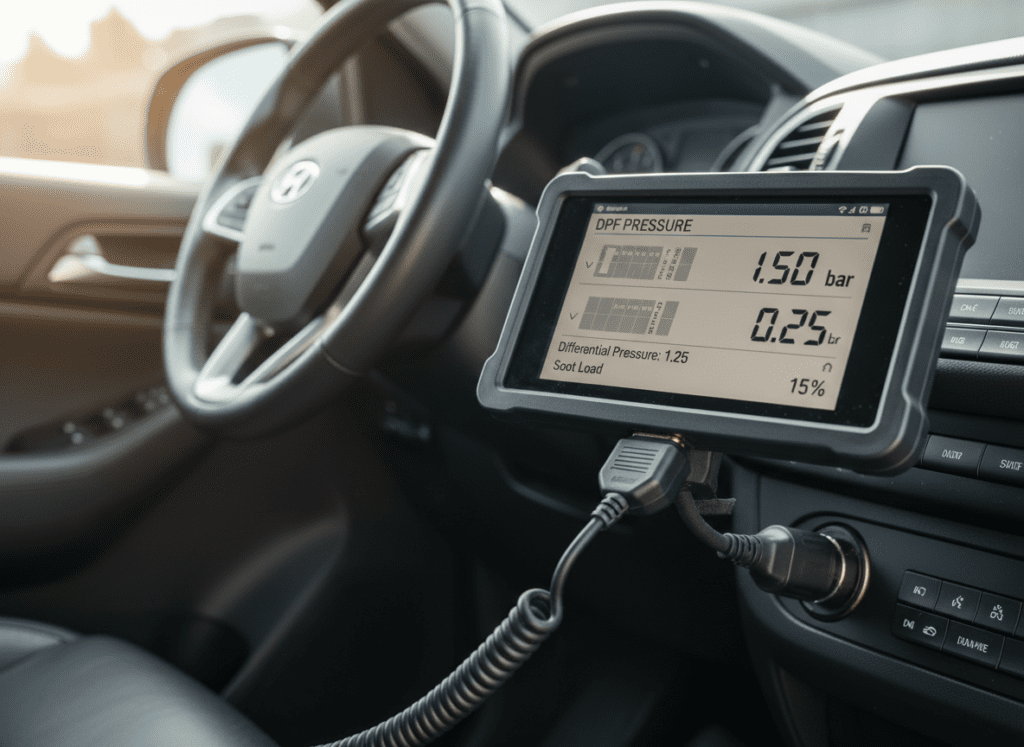

What a DPF pressure reading actually measures
Most vehicles use a differential pressure sensor.
It measures the difference between pressure before the DPF and pressure after it.
Low pressure difference
Exhaust flows freely.
The DPF is likely clear, or the engine is under light load.
Rising pressure difference
Exhaust finds more resistance.
The DPF may be loading with soot, ash, or there may be a fault affecting regeneration.
High pressure difference
Restriction is likely significant.
This is when you see poor performance, frequent regens, warning lights, or limp mode.
Why the same number can mean different things
Pressure changes with RPM and load.
A reading at idle is not the same as a reading under acceleration.
A simple way to think about it
- Idle reading tells you if the system looks calm when airflow is low.
- 2,000–2,500 RPM under light load shows how the DPF behaves in normal driving.
- Higher load shows if restriction climbs quickly when the engine works harder.
If the root cause is poor regeneration conditions, this guide helps:
what causes DPF blockages
.
What can push pressure readings up
A “high reading” does not always mean the DPF itself is the only issue.
These are common causes we see behind repeated loading.
If these causes sound familiar and pressure values are climbing, delaying inspection can increase exhaust restriction and strain other components. In many cases, a professional clean restores flow before damage develops. If you are searching for DPF cleaning near you, mobile diagnostics can confirm the correct next step.
Short trips and low exhaust temps
The DPF does not get hot enough for regeneration to complete.
Soot builds faster than it clears.
Faults that stop regeneration
Sensors, boost issues, EGR faults, or temperature problems can block the regen process.
Pressure rises because soot never gets burned off.
Sensor or pipe issues
Split hoses and blocked sensor ports can give misleading readings.
Diagnostics should confirm sensor health before decisions get made.
Ash build-up over time
Ash does not burn off like soot.
It can reduce flow as mileage climbs, even when the engine runs well.
If you’re weighing up options, this is useful context:
DPF cleaning vs replacement
.
What to do if your pressure reading looks high
If you have no warning lights
- Check how you use the car week to week.
- Look for repeated short trips.
- Book a diagnostic if you want certainty.
If you have warning lights or limp mode
- Do not keep clearing codes and hoping.
- Get live data checked properly.
- Use a service that matches the urgency.
If the car needs a regen now
- Forced regeneration can be the right step.
- It still needs checks first.
- Fixing the cause stops repeat problems.
